Product Highlights

  • Intel Core Ultra 5 Processor 225H (Series 2)
  • 14" Thin Bezel FHD+, Wide View Angle Matte Display
  • Intel Iris Xe Graphics
  • 16GB DDR5 at 5600MHz
  • 1TB Crucial P3 Plus M.2 PCIe Gen 4 NVMe
  • Intel Wireless Wi-Fi 7 BE200 + Bluetooth
  • Thunderbolt 4 with Power Delivery DC in
  • White-LED illuminated keyboard
  • Windows 11 Home 64-Bit Edition
  • 0.71 inches thin slim design


Features & Design Specifications
Intel nth il

Intel Inside®.
Extraordinary Performance Outside.

Sager recommends Windows

Windows 10
NP3541U

0.71 Inches
Slim Design

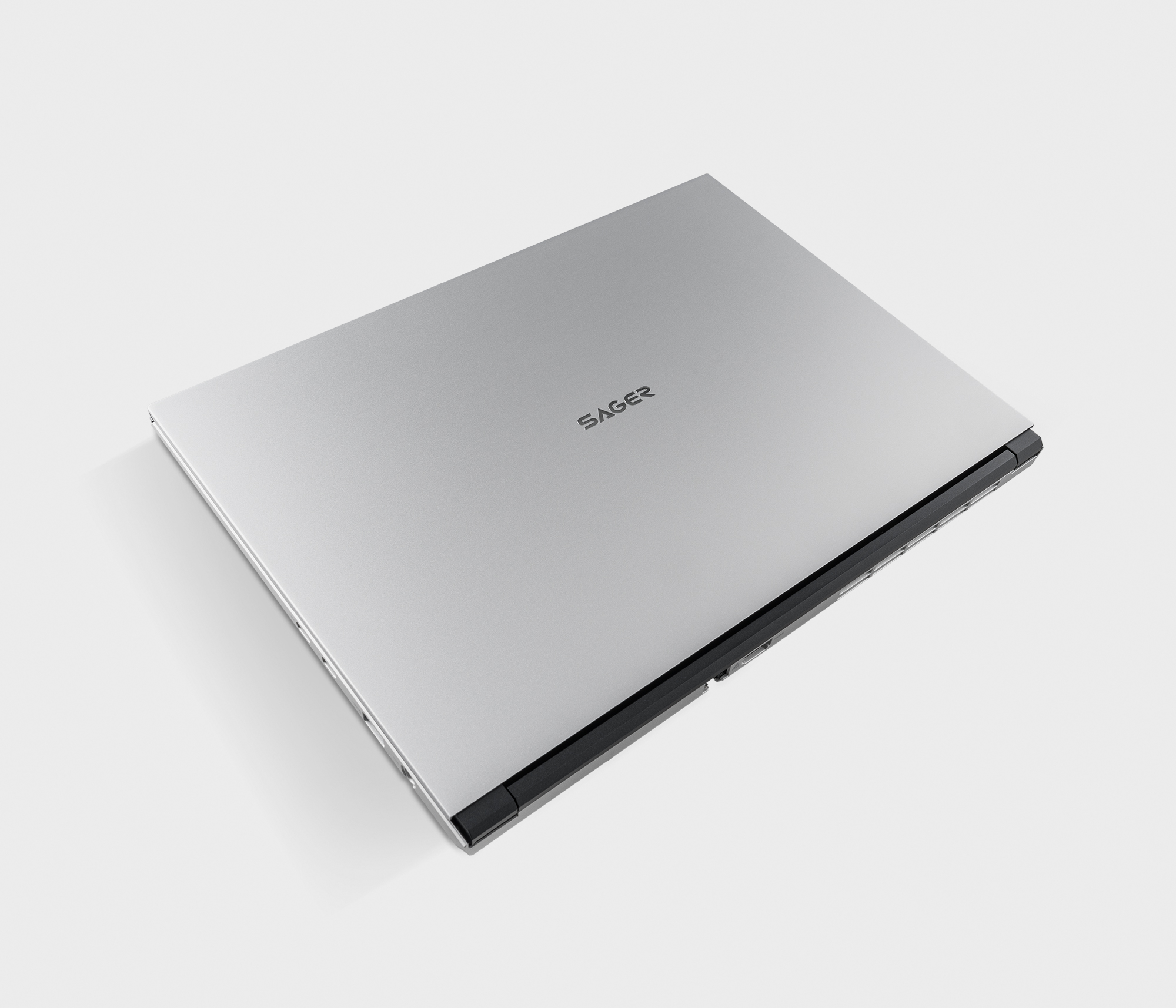

Strong body, smart fit. NP3541U's remarkably thin shape conceals its advanced capabilities in just 0.71 inches of machined metal.

Ready for the AI Era
Intel Core Ultra H
Series 2 Processor

Harness the power of AI to work smarter and create faster with the NP3541U. Equipped with the latest Intel Core Ultra H Series 2 processor, it features a hybrid P/E/LP-E core architecture, integrated Intel Arc graphics, and a dedicated NPU to deliver exceptional speed, efficiency, and performance. Experience AI-accelerated workflows, reduced render times, and boosted productivity—so you can achieve more in less time.

  • 5.1GHz In Turbo Boost
  • 16 Cores
  • 96 TOPS Overall Peak TOPS

* Specification based on Intel Core Ultra 7 Processor 255H

DDR5 RAM ( Up To 5600MHz* )

DDR5 memory boosts gaming, rendering, and multitasking at game-changing speeds, 50% faster than DDR4 at launch. Gain bar-raising performance with double the banks and double the burst length. Enjoy quicker transfers, less lag, and faster load times, downloads, and refresh rates.

* Real operation frequency depends on Processor

144Hz, Wide View Angle, 72% NTSC Display

FHD+ Display
Wide View Angle

Graphics and video explode onto your screen in perfect detail. NP3541U's 14" 16:10 wide viewing angle display renders the best vivid broad-spectrum color in precise FHD+ resolution. Enjoy an exceptional viewing experience at virtually any angle.

Multi-Display
Capability

Work across 3 screens and see the bigger picture. Your NP3541U supports up to 2 additional monitors via Thunderbolt port and HDMI. Approach complex or large-scale projects from different angles at the same time.

  • 16:10 Aspect Ratio
  • 1920 x 1200 Resolution
  • WVA Screen
  • Intel Arc Graphics* Xe Architecture‡

* Intel Arc graphics requires at least 16GB of system memory in a dual-channel configuration.
‡ Intel Core Ultra 7-255H featuring Arc 140T GPU | Intel Core Ultra 5-225H featuring Arc 130T GPU

High Performance
PCIe Gen4 X 4 Capable

Wait less. Play more. NP3541U features two ultra-fast PCIe Gen4 x4 SSD, capable of load speeds up to 7000MB/s* that expedite boot times and game loading.

Thunderbolt 4 with
Power Delivery Input

Maximize NP3541U's capabilities with its 40Gbps Thunderbolt 4 port, the new standard in high speed flexibility. Connect and quickly access extra storage at lightning fast rates, or support an additional display at 8K resolution, or two displays in 4K. Daisy chain more devices than before and more securely. NP3541U can charge while connected to Power Delivery Input (PD-In) docking, and connected peripherals can wake it from sleep with just a touch or key-press. The possibilities are endless.

Blazing Speed
Wi-Fi 7
Connection

Breakthrough bandwidth. Connect to the most advanced networks with multi-gig speeds Wi-Fi 7 for lighting-fast, uninterrupted HD and 4K streaming, competitive gaming, VR, and video conferencing without the lag or the headaches.

Wi-Fi 7 LOGO

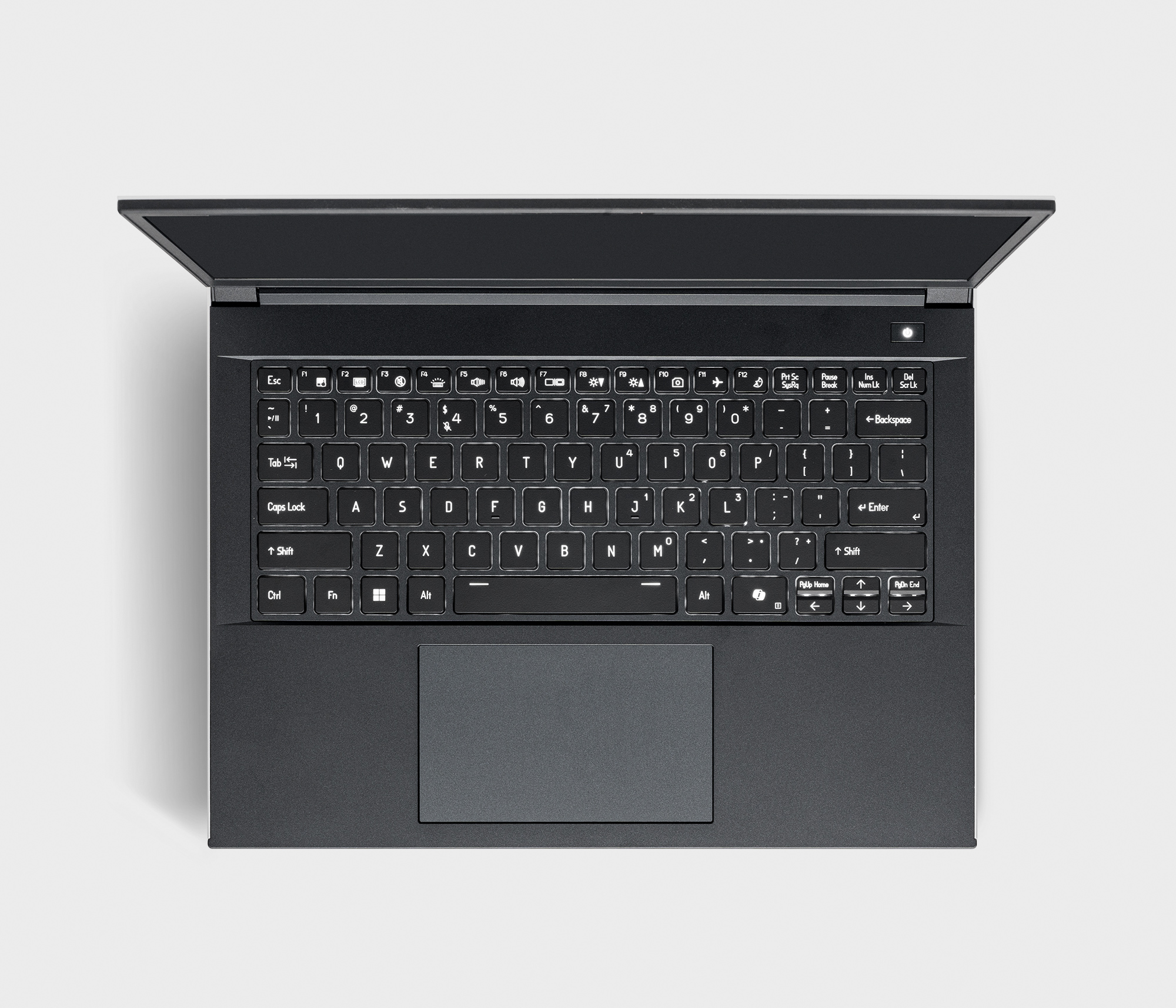

Illuminated
Keyboard

Light up your words with NP3541U's white illuminated keyboard. This amazing technology delivers illumination bright enough to make typing and gaming easy and fun in low-light environments, even in the dark.

Processor

Intel Core Ultra 7-255H Processor (2.0 GHz, up to 5.1 GHz Turbo Boost), 16 cores / 16 thread, 24MB Cache, TDP: 28W
Intel Core Ultra 5-225H Processor (1.7 GHz, up to 4.9 GHz Turbo Boost), 14 cores / 14 thread, 18MB Cache, TDP: 28W
Memory

Supports Dual Channel DDR5
Two 262 Pin SODIMM sockets, support for DDR5 up to 5600MHz (Real operation frequency depends on processor and memory module)
Expandable up to 96GB, depends on 8GB/16GB/32GB/48GB SODIMM module.
Display

14” FHD+ (1920x1200) Wide View Angle, Matte Finished
Graphics
Processor


Intel ARC Graphics (based on system with dual DDR5 and total memory capacity above 16GB)
- Intel Arc 140T GPU (Intel Core Ultra 7-255H)
- Intel Arc 130T GPU (Intel Core Ultra 5-225H)
- Ray Tracing
- Variable Rate Shading
- Microsoft DirectX® 12 compatible


Intel Xe Graphics (based on system with single DDR5, or total memory capacity not reach 16GB)
- Ray Tracing
- Variable Rate Shading
- Microsoft DirectX 12 compatible
Storage

Two M.2 2280 SSD, PCIe Gen 4x4 interface
Audio System

High Definition audio interface
Built-in Array Microphone
2 Built-in Speakers
Pointing Device

Integrated Click pad with Microsoft PTP multi-gesture and scrolling function
Keyboard

Multi languages, White Color illuminated A4 size isolated keyboard

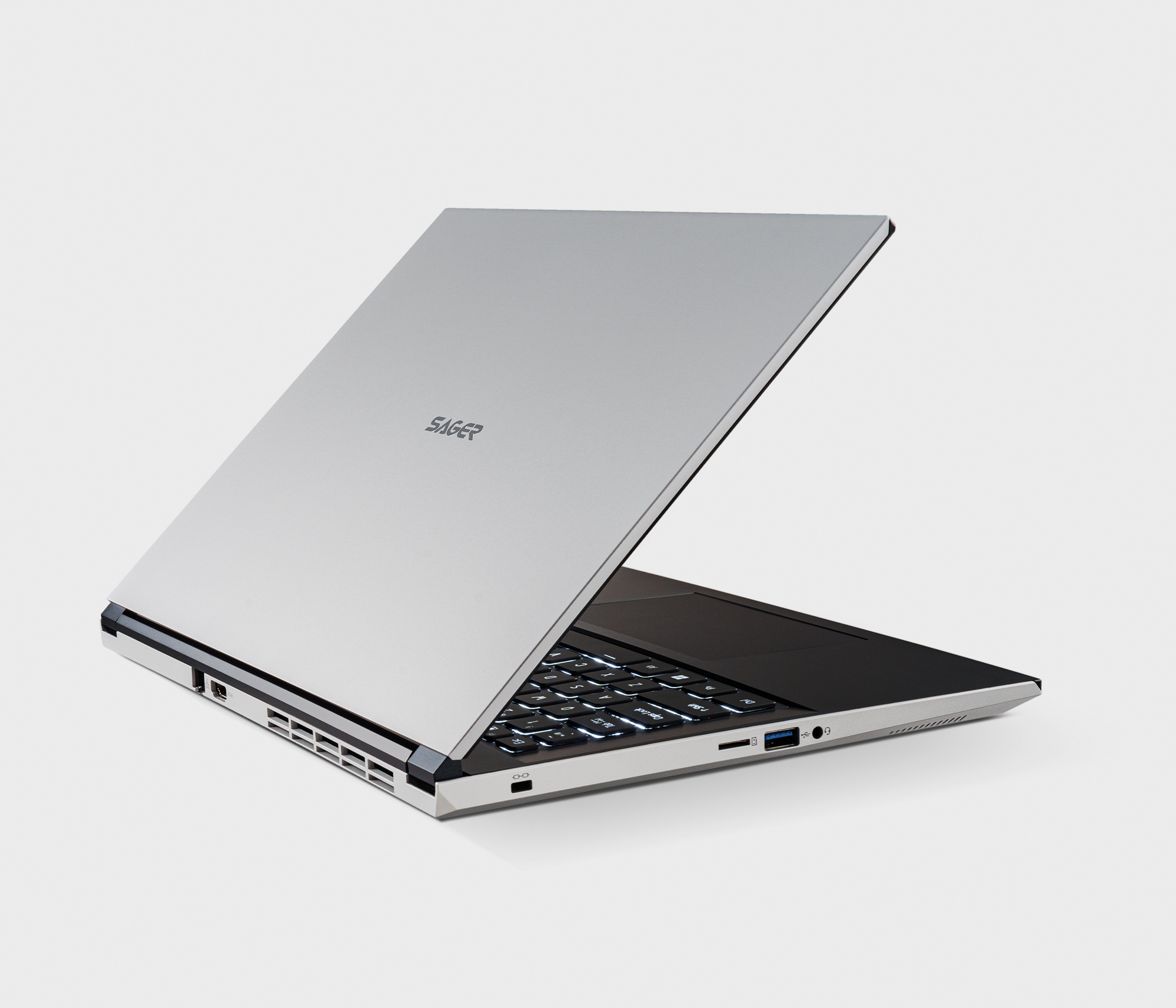

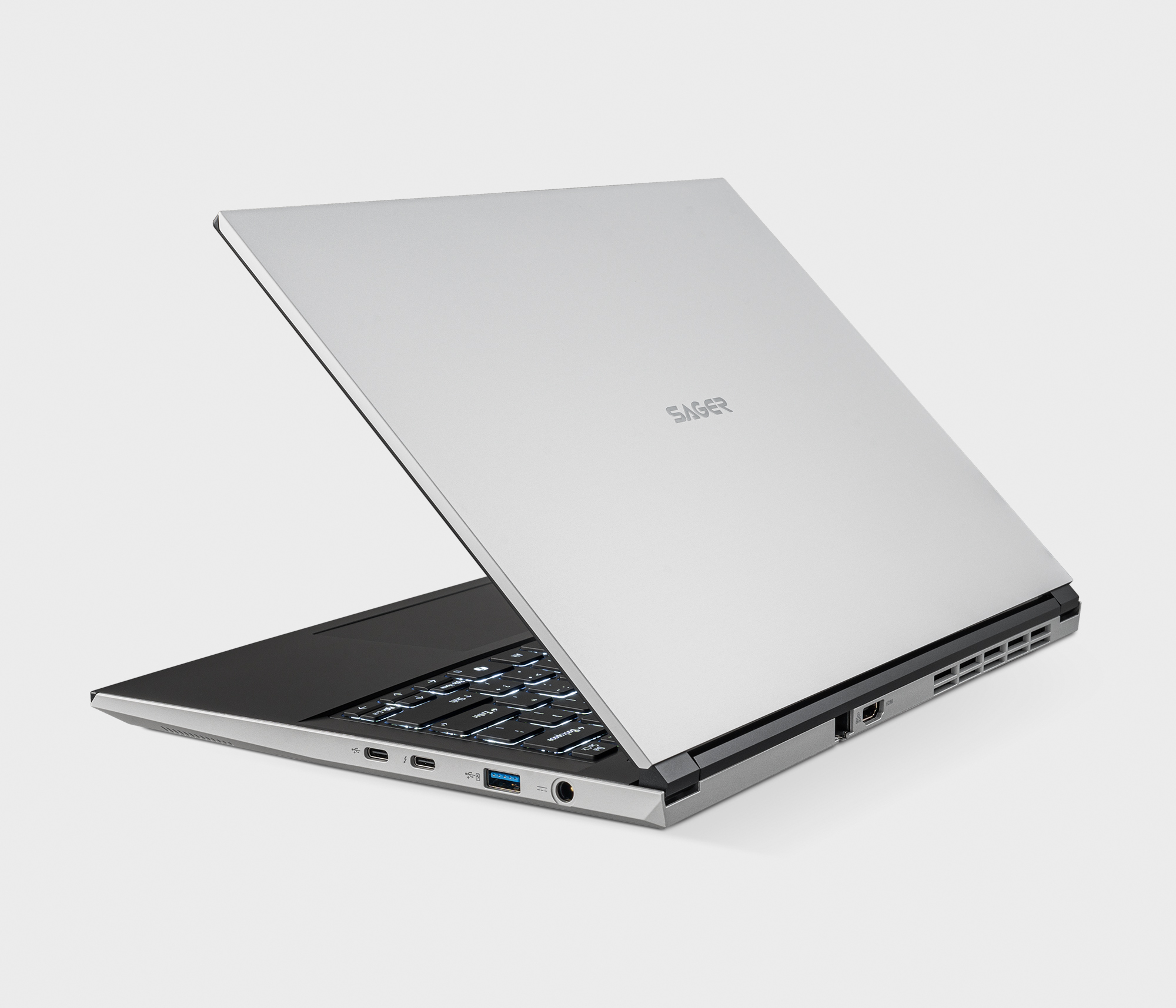

I/O Ports

1 HDMI output Port (with HDCP)
1 Thunderbolt 4 combo port with Power Delivery DC in (Type C)
1 USB 3.2 Gen 2 Port with Power Delivery DC in (Type C)
1 USB 3.2 Gen 2 Port (Type-A) (1x Powered USB port, AC/DC)
1 USB 3.2 Gen 1 Port (Type-A)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 RJ-45 LAN (10/100/1000Mbps)
Card Reader

Micro SD Push-Push Card reader
Slots

Three M.2 Card Slots
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface
- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface
Communication

Built-in Gigabit Ethernet LAN
Intel Wireless Wi-Fi 7 BE200 + Bluetooth, M.2 interface
Security

Security (Kensington Type) Lock Slot
Intel PTT (Platform Trust Technology)
Power System

Embedded Polymer Smart Lithium-Ion battery pack 73WH
Full-Range AC-in 100~240V, 50~60Hz, 90W AC Adapter, DC output 19V, 4.74A
OS Support

Windows 11 (64-bit)
Certificates

Windows 11 (64-bit) Logo
HDMI Logo
Weight and Dimensions

3.22 LBs including 73WH Battery Pack
12.48" (w) x 9.25" (d) x 0.71" (h)
Other Features

Metal top and bottom case
Built-in 1.0M HD Video Camera
FlexiCharger
MIL-STD 810H



Specifications are subject to change without notice
